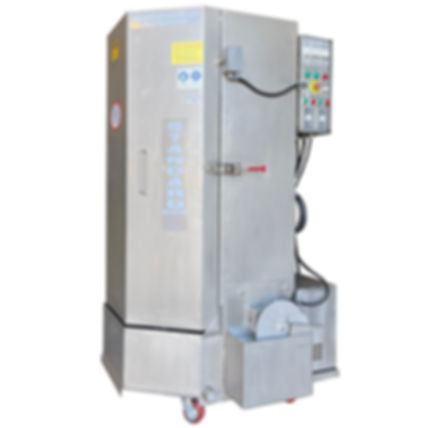

STAINLESS STEEL SPRAY WASH CABINET

SINGLE PHASE, 208V-240VAC, 60HZ



MODEL STW-750SV



3.0 HP Stainless Steel Water Vertical Pump.



Warranty: One (1) year parts warranty, two (2) year pump warranty, and five (5) years cabinet warranty



The all-stainless steel design* greatly improves the rust and corrosion resistance of the machine, making the service life of the spray wash cabinet longer.



  • 24V AC safety control panel power
  • Internal dimensions: 30” turntable; 54” job height; 1,250 lbs. max weight capacity
  • Low water level alarm and automatic Shut-off protect heating elements and water pump against low water levels
  • Stainless steel oil skimmer allows longer use of solution whilst changing less frequently
  • Sprocket drive that won't rob you of water pressure like water driven models can tend to do
  • Slow 4-5 rpm gives a superior, more thorough cleaning performance over water driven models
  • 3.0hp stainless steel Vertical pump that pumps a solid 68 gallons per min
  • 68 gallons insulated solution tank provides an ample supply of water for extra heavy-duty parts
  • 6 kW heating element heating solution up to a maximum of 194F (90C) in approx. 1 hour
  • Full opening gasket free door as gaskets will often perish with long term exposure to steam
  • Stainless Steel Removable tank fine filter screen allows for quick and easy cleaning and protects the water pump
  • Optional biodegradable, non-caustic, heavy duty powdered detergent. ​
  • Power requirement: 208V-240V AC, Single phase, 60Hz, 50Amp



Shipping*:



Standard LTL shipping to commercial address in 48 continental states.

$85.00 ea. additional charge will be applied on home-based business, limited access, liftgate, inside delivery service, and etc.

Local pickup is not available now

Please see detail information at shipping option.





Features



  • Simple Operation
  • 0-60 Minute Automatic Timer
  • 0-15 Minute Oil Skimmer
  • Turntable Jog Switch
  • Sprocket Drive Turntable
  • Stainless Steel turntable bearings

  • Stainless Steel Spray Nozzles
  • Stainless Steel Removable Fine Filter
  • Stainless Steel Removable Parts Basket
  • Stainless Steel Removable Parts Tree
  • Accommodates Engine Crane Loading
  • Gasket Free Door
  • Heavy Duty Polyurethane Casters
  • 3.0hp Stainless Steel Vertical Pump
  • 1,250 lb Capacity Heavy Duty Stainless steel Turntable
  • 2.75mm thickness SS304 stainless steel cabinet and door





*all-stainless steel design excluding the steel pump cover and control panel box

* If any additional charge applied on the delivery, we will send a separate bill for that.

* Warning: CA Prop 65

STW-750SV

$11,989.00Price
Expected to ship in 60 business days
  • Model

    STW-750SV

    Overall Height

    78"

    Working Height

    50"

    Inside Width

    32"

    Working Turntable Diameter

    28"

    Floor Space

    44" x 43"

    Load Capacity

    1,250 lbs.

    Water Temperature

    135º – 194º Degrees F

    57º – 90º Degrees C

    Pump Max Flow

    68 GPM

    Electric Heater

    6 KW

    Cycle Timer

    0-60 Minutes

    Tank Capacity

    68 Gallons

    Stainless Steel Pump

    3.0HP VERTICAL

    Turntable Jog Switch

    Standard

    Water Level Switch

    Standard

    Low Water Shut-off Switch

    Standard

    Removable Tank Screen

    Stainless steel

    Oil Skimmer

    Stainless steel

    Small Parts Basket

    Stainless steel

    Removable Parts Tree

    Stainless steel

    Handle & Latch

    Stainless steel

    Heavy Duty Casters

    Included

    Door & Cabinet

    2.75mm thickness

    SS304 Stainless steel

    Power Requirement

    Single Phase,

    208V-240V AC, 60HZ, 50Amp.

    *Specifications Subject to Change Without Notice
